MicromATR™

The MicromATR™ is a new product designed to provide the highest available performance in an Attenuated Total Reflection (ATR) Fourier transform infrared (FT-IR) spectroscopy accessory.  MicromATR™ is a very flexible platform with many sample interface crystal options, FT-IR spectrometer interfaces, and pressure applicators. The small diameter of the ATR crystal allows the analysis of a broad range of samples, from macro to micro.

ATR sampling with the MicromATR™ is fast and easy.  Elegantly smooth operation of the torque knob delivers high and even pressure onto the sample ensuring high quality ATR spectra from even the most difficult samples. The hardness and chemical resistivity of the diamond internal reflection element enables the analysis of hard samples, abrasives, and corrosives. The MicromATR™ mounts into the sample compartment of most FT-IR instruments – no alignment is necessary.

Innovative Optical and Mechanical Design

• High efficiency, cost effective diamond ATR accessory

• Broad range of ATR crystal plates - multireflection, specialized materials - including other manufacturers’ ATR Sampling Disks

• Versatile macro and micro ATR sampling

• Complete mid-IR and far-IR spectral range, limited only by spectrometer optics

• Kinematic mounted ATR sampling plates – optimal position every time

• Compact optical design, small purge volume

• Interfaces with most FT-IR instruments

Applications

• Drug characterization

• Forensic Science

• Fiber analysis

• Contaminant identification

• Surface defect characterization

……and many more

To view the MicroATR product note, click here.

MicromATR™ Features and Options

Diamond XR - single crystal diamond prism that provides the largest spectral range (mid-IR through far-IR)
Diamond HT - single crystal diamond prism coated to provide higher optical efficiency in the mid-IR
Germanium single reflection (non-viewing)
Zinc Selenide -  single crystal zinc selenide prism coated to provide high optical efficiency at an economical cost
Diamond or silicon 3 reflection liquids and solids (non-viewing)
Diamond or silicon 9 reflection liquids (non-viewing)
Zinc Sulfide/zinc selenide composite 9 reflection liquids (non-viewing)

Prisms are mounted in a 316 Stainless Steel disk.
ATR Crystal Disks are mechanically mounted and magnetically fixed.
Smiths Detection and SensIR Technologies DuraDisks™ can also be used with MicromATR Vision™ (non-viewing).
Additional hastelloy disk with a diamond/zinc selenide crystal available upon request.

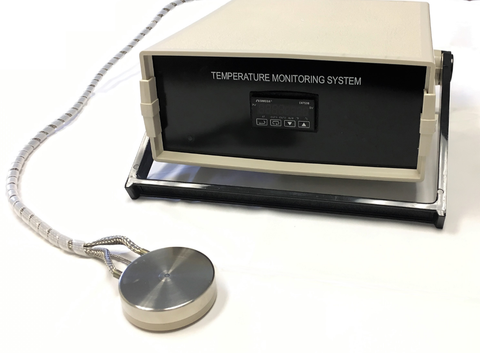

The heated ATR disk's temperature controller, from Czitek, is a temperature controller designed to work with both the MicromATR and MicromATR Vision. The controller allows the user to set the disk temperatures up to 130°C in 0.1°C increments.

Heated XR Diamond - single crystal diamond prism that provides the largest spectral range (mid-IR through far-IR)
Heated Diamond or Silicon 3 reflection ZnSe composite – For use with liquids or solids (Non-Viewing)
Heated Diamond or Silicon 9 reflection ZnSe composite – For use with liquids only (Non-Viewing)

External Reflectance Disk

For specular reflection measurements of flat, reflective surfaces or substances deposited on reflective surfaces.
Great for use with thin films deposited on metallic surfaces and or highly reflective polymers with little to no sample preparation.
Constructed from 316 stainless steel and magnetically fixed.

Pressure Applicator and Tips

Torque Knob delivers optimum pressure for good contact and high quality spectra.

Magnetically fixed tips are easily removable for cleaning and allow for better handling of a range of sample morphologies.

Purge

Compact Accessory with efficient optical design provides an extremely small purge volume and path.
Quick disconnect purge adapter allows dedicated purge to the accessory.
Purge tubes compatible with your FT-IR spectrometer permits purge isolation.

Accessory Dimensions: 4.5 X 3.5 X 3.5 inches (114 X 90 X 90 mm)
